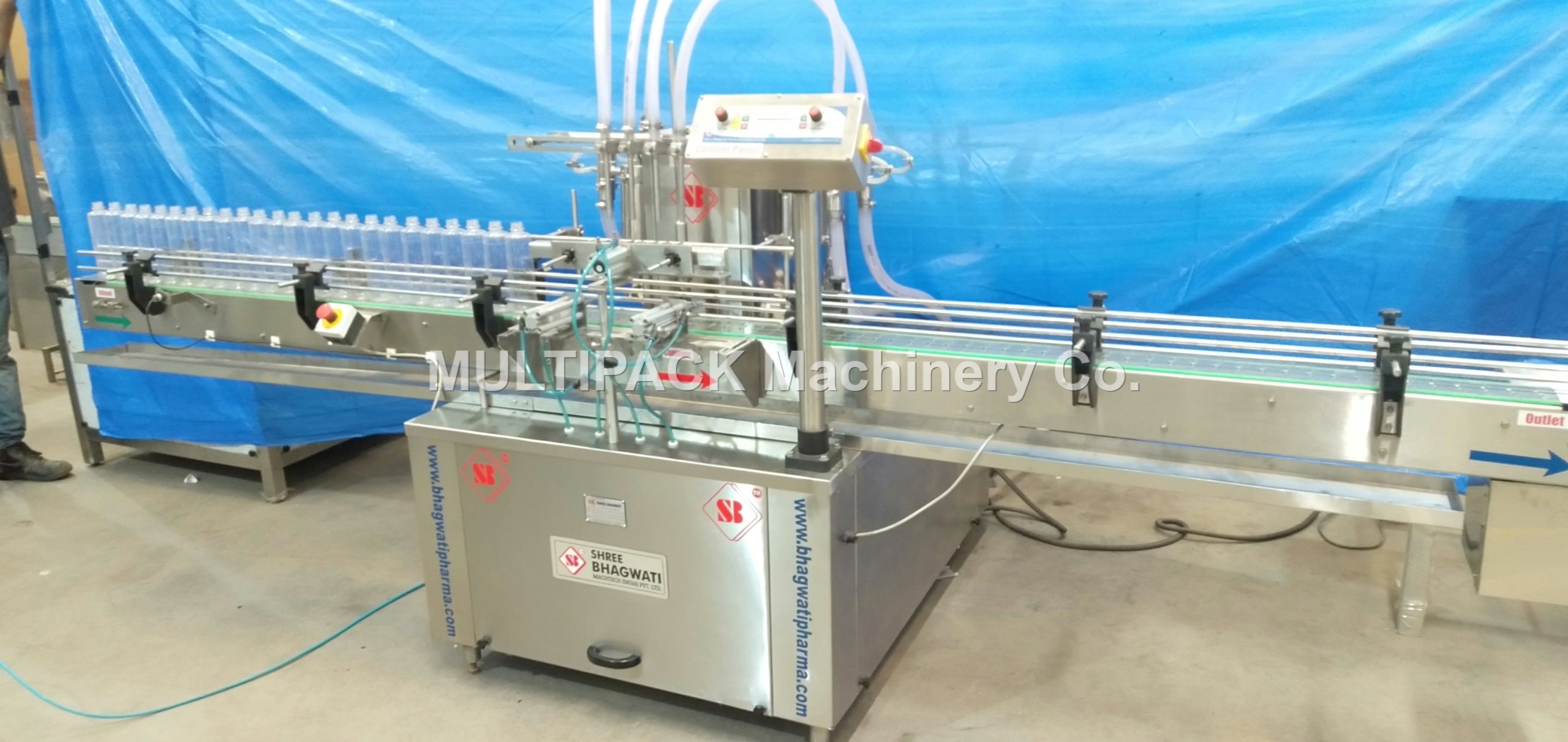

Automatic Four Head Volumetric Bottle Filling Machine – Volumetric Liquid Filler

These innovative systems fill containers with a precise amount of product through a volume-based approach. This requires few manual adjustments or guesswork on behalf of the operator. 2, 4, 6, 8 or 12 Head Automatic Volumetric Liquid Filling Machine: Speed: 120 bottles per minute • Filling   SPECIFICATION OF THE EQUIPMENTMACHINE’S BASICS MODEL NO: MMCLF-100 PARTICULAR SPECIFICATION Machine Name Automatic Volumetric Liquid Filling Machine Production Speed Per Minute Up 16 to 24 containers per minute Speed Depends upon the product nature Number of Filling Heads 4 Heads Working Direction Left to Right – Linear Filling System Volumetric Syringe Based Suitable for Products Free Flowing Solvent Liquid Suitable for Packing Material Pet Bottle, HDPE Bottle, Glass Bottle Application Filling Liquids in to the Bottles /Containers Volume Capacity (Range of Syringe) 5ml to 1000ml Volume Adjustment With the Help of Volume Adjustment Block Suck Back System NRV Based / Drip Free Nozzles Up Down Movement of filling head Mechanical (Cam base) (according to filling volume) Filling Volume Accuracy /-1 % in single nozzle Conveyor Length 6 Feet Working Height 860mm ( /-50 mm) No Bottle – No Filling Provided Bottle Stopper Pneumatic Based Storage Tank Customer’s Scope Silent Feature Ø  Drip tray under the conveyor Ø  No Bottle No Fill arrangement Ø  Body covered with SS 304 sheet. Ø  Minimum change over time from one size to another container for fill size. Ø  Foaming & spillage is avoided due to diving nozzles. (More foaming liquid: Pneumatic up-down system available as optional) Ø  Rigid vibration free construction for trouble free performance. Ø  Pneumatic gates (Entry and Exit of bottles) Ø  “Emergency stop” Push Button. Ø  Measurement scale (Label) to volume block for filling volume adjustment. Ø  Safety guard for conveyor gearbox, motor.   MACHINE’S MATERIAL OF CONSTRUCTION PARTICULAR SPECIFICATION Machine main base frame Mild Steel Angles Machine Coverings Complete in S.S. 304 Product Contact Parts Stainless Steel 316 Non Contact Parts Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable) Conveyor Stainless Steel 304 Conveyor Guide Stainless Steel 304 Rod (10mm Round Bar) Slat Chain Size 97mm, Pitch – 3.5”, Stainless Steel 304 Slat Chain thickness 3mm Bearings SKF / Nachi (USA) / Timken (USA) / Equivalent Plating(Wherever Applicable) Zinc / Hard Chrome / Blackening In let & Out Let Pipes Stainless Steel Braded Pipes Material Collection Tray at the bottom of Conveyor Stainless Steel 304 Main Chain Sprocket Duplex
